Hook-On System (M-S2)

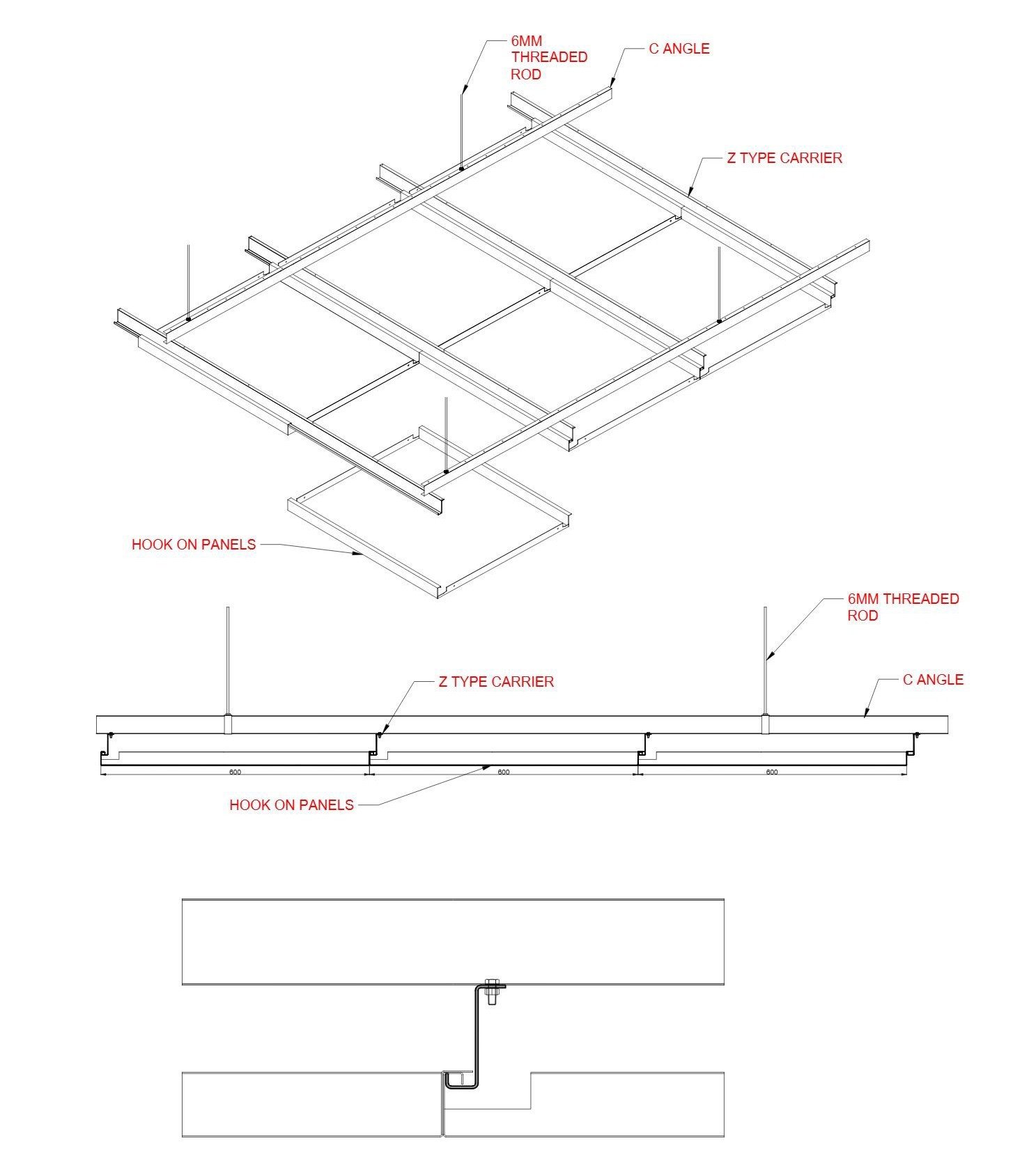

The Hook-On Ceiling System (M-S2) is Metscreen’s best-selling concealed-frame ceiling solution. Panels hook directly onto a Z-shaped keel carrier for fast, one-way parallel installation, delivering a flat, tightly sealed surface that hides all plumbing and services running above the ceiling line.
Specifications:
- Panel Size: Up to 1200 × 600 mm
- Material: Aluminum / GI
- Finish: Powder Coated / Custom finishes
- Edge Detail: Custom-formed hook edge, concealed carrier
- System Type: Concealed Frame (Hook-On, Z-Carrier)
Acoustic Options :
Perforated panels with acoustic backing help improve sound absorption:
- Perforation: Ø 1.8 mm / Ø 2.5 mm
- Backing: Acoustic fleece / Mineral wool
- Open Area: Up to 20%
Key Features :
- Quick one-way, parallel hook-on installation on Z-type carriers
- High surface flatness with strong, gap-free sealing
- Panel shape can be customized for a high degree of design freedom
- Metscreen's best-selling, most widely specified system
- Compatible with acoustic perforation
Where & Why to Use
The Hook-On system is chosen for large-format commercial and transit interiors where a flat, continuous ceiling surface and fast installation matter most.
Common Applications:

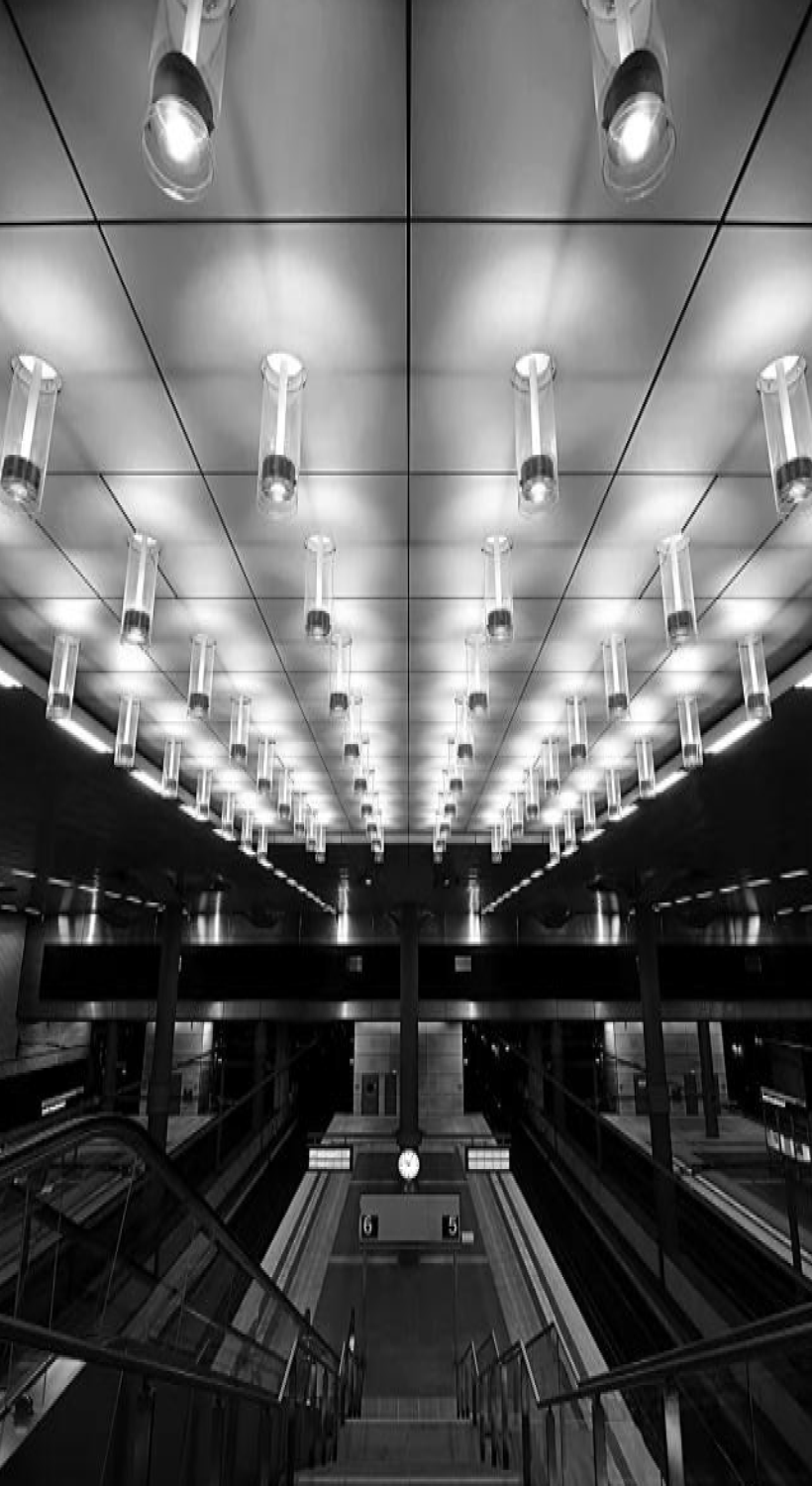

- Metro stations, airports & transit hubs
- Corporate offices & business parks
- Shopping malls & retail complexes
- Auditoriums & convention centers
- Large-scale commercial fit-outs
Why Choose Hook-On?
Its Z-carrier hook mechanism allows quick, precise one-way installation across large areas while keeping the surface perfectly flat and sealed — ideal for high-visibility public spaces where appearance and installation speed both matter.
For more information or to discuss your project requirements, please contact our sales team at info@cvcreation.in or call +91 9737621676.
